We UNIPULSE have a large selection to enable customers to select a load cell that suits all sorts of equipment.

In this issue, we are introducing load cell models with extendable operating temperature range from low (-20°C) to high temperature(+ 100°C).

By accommodating low and high temperature, the range of applications of load cell will expand even more.

• For a wide variety of tests inside a thermostatic chamber
• For load tests of materials when it's expanded due to temperature change
• For performance assessments of automotive parts
• For pressing machines of resin molded components
• For load tests under vacuum environments such as semiconductor or aerospace field

The customization available for 1kN, 2kN and 5kN.

With hardly any interference of torsions and less impact on accuracy against lateral loads, UIS is an easy-to-install double-end male thread type load cell.

As it is hardly affected by lateral load, UIS is ideal for the following applications:

• Load measurement for a robot hand part
  UIS eliminates the impact of moment due to an inclination of the hand part.
• Load measurement for a rotor press-fitting load of a motor
  UIS eliminates the impact of a magnetic force.

Due to its high load capacity, UIS can be utilized for the following applications too by making it compatible with high & low temperature:

• Durability test of metal parts under high & low temperature environment

The customization available for 5N, 10N, 20N and 50N.

Resistant to overloading due to the safe overload of 500%, USM is ideal for measurements of tension force measurement, a mating check of connectors, a durability test of resin materials and such.

The customization available for 50N, 100N, 200N and 500N.

Despite of its compact and space-saving main body, URM is capable of high precision measurements.

As it is possible to measure in both tension and compression directions, URM is recommended for the following applications:

• Tension measurement of a winder
• Pressing force measurement at connector crimping

The customization available for 1kN, 2kN, 5kN,10kN and 20kN.

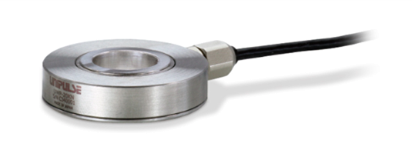

It can be used for a variety of applications such as:

• Axial force measurement of a bolt
• Force management of a bearing or a shaft
• A press machine where a load cell needs to be installed at the outer perimeter of a cylinder
• Equipment where a pipe needs to be passed at the center for water or air cooling

The customization available for 5N, 10N, 20N and 50N.

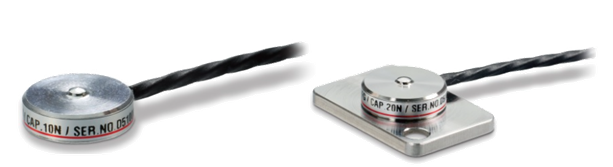

With a diameter of 12mm and a height of 4mm, UNCSR is able to measure loads in narrow environments.

A model with the base plate which makes installments easy is also available.

Low profile and small diameter, UNCSR is ideal for the press-fitting load measurement of a small press machine.

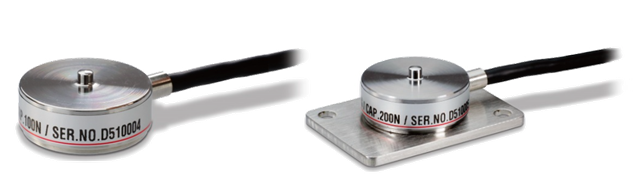

The customization available for 100N and 200N.

A model with the base plate which makes installments easy is also available.

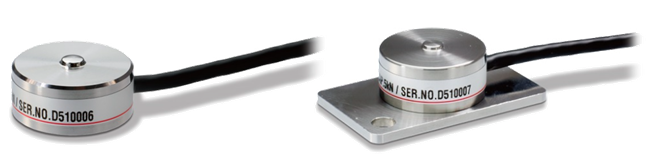

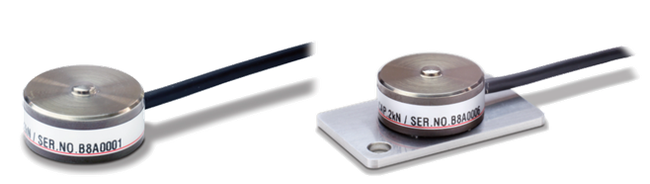

The customization available for 2kN and 5kN.

Due to the special steel with high hardness, wear resistance is greatly improved. Ideal for high cycle applications!

A model with the base plate which makes installments easy is also available.

The customization available for 100N, 200N, 500N, 1kN, 2kN and 5kN.

As a standard model, UNLS is available at a competitive price.

A model with the base plate which makes installments easy is also available.

The customization available for 500N, 1kN and 2kN.

UNCLB is an easy-to-install load cell threaded with female screws on both ends.

Other than "low & high temperature compatible" we introduced in this issue, UNIPULSE have been developing load cells that satisfy your needs such as "vacuum environment compatible", "Siloxane-free" and more.

If you have any concerns, feel free to ask us anytime.
