UNIPULSE provides a lineup of force sensors with built-in amplifier and equipped with digital output.
RS-485 is used for the digital output, which is noise-resistant and transmits accurate information to superordinate.
This time, we will show you the way to connect the UNIPULSE sensors directly to Mitsubishi Electric's PLC "MELSEC iQ-F Series" and make a measurement effortlessly.
Just connect a sensor to PLC!
FB (Function Block) and the sample ladders are already created!
Just by connecting Mitsubishi Electric's "MELSEC iQ-F Series" and UNIPULSE sensor with RS-485, measured values can be acquired from the sensor effortlessly.
Connect the monitor Mitsubishi Electric "GOT2000" to the PLC, and it is possible to display measurement and judgement screen, graph and logging data and to perform settings on a sensor.
Watch the video below:
Build noise-resistant measurement system!

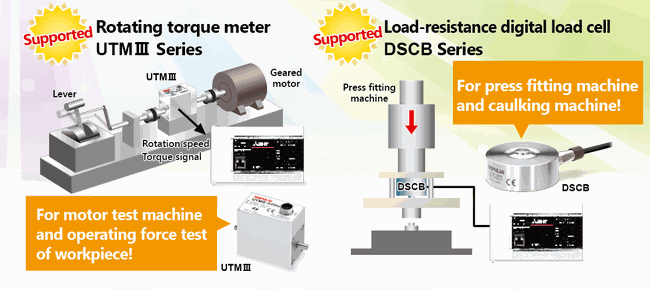

UNIPULSE's "UTMIII Series" and "DSCB Series" allow building a noise-resistant measurement system due to the digital output utilizing RS-485.
Displays each screen on the monitor with ease!
The following sample screens are available.
Once installed on GOT2000 Series, the measurement environment is arranged immediately.
Displaying the graphs in real-time
Displaying the logging data
Saving data to SD card also possible
Displaying the measured value
and the judgement
The settings such as the filter & judgement condition is possible
Supported models:
Programmable Controller MELSEC iQ-F Series: FX5U / FX5UC / FX5UJ / FX5S
GOT2000 Series: GT25 / GT27
UNIPULSE sensor: Rotating torque meter UTMIII series / Load-resistance digital load cell DSCB series
