Want to measure load and torque for quality management!
But...
- It is too narrow so that the sensor cannot be placed.
- Because the measurement part moves, the cable gets in the way.
- I want to measure force to be applied to the workpiece but want to avoid the change of equipment.
Customized sensors will solve those problems!
Watch the video below:
By producing sensors with the same shape as the workpieces, they can be utilized in a great deal of applications such as the periodical check of existing equipment or the adjustments at the shipment of machinery.
By 100 times/sec sampling, even force transition can be measured.
Data logging as well as transferring and managing data to PC or PLC are possible.
For example, small-size digital load cells, torque meters and more…
Ultra-compact amplifier & wireless board
Small-size battery
Strain part (Strain gauge)
Even supports
compact-size!
Specification of this example:
Ideal for such applications as well:
- Compact-size thus it can be placed in a narrow spot!
- Power supply cable is unnecessary due to battery driven!

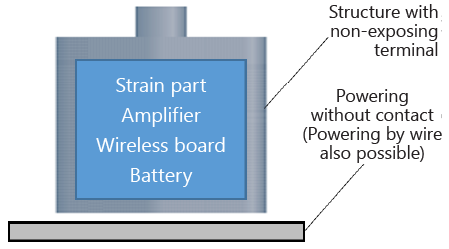

- The structure with a non-exposing terminal is possible too!
With a structure with a terminal that is not exposed, simple sterilization is also possible!
Even a sensor with the main body weight of only 20 g can be produced.
For a periodical check of cappers or press machines
Above: an example of a capper check.
The sensor can perform measurements while being put in the production line with actual products.
