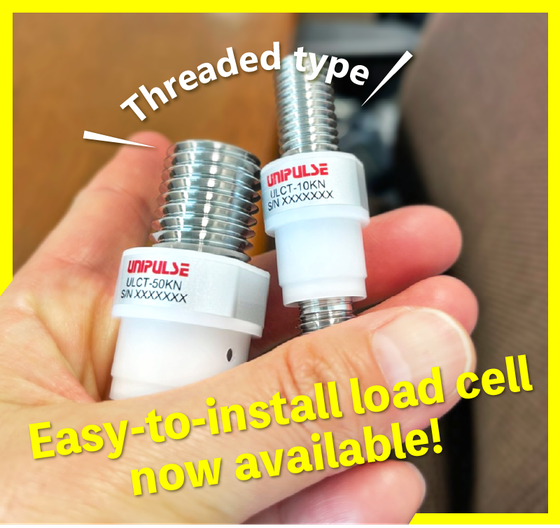

Introducing new compact & compression/tension type load cell!
Want to introduce a load cell! However…
- I need to think how to install a load cell…
- There is no room for a load cell to install...
That's the reasons why this threaded type load cell is supported!
● ULCT

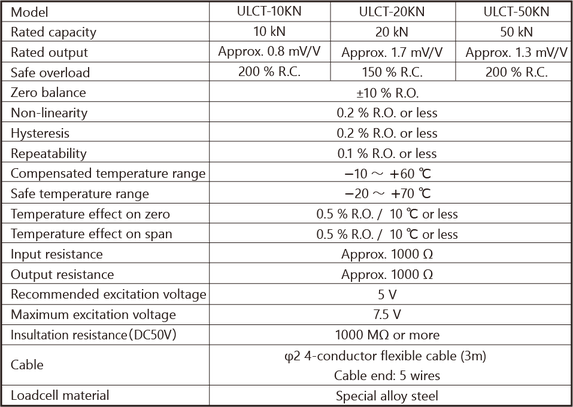

Specifications
ULCT is a load cell with male screws on its top and bottom ends.
As this load cell can be fixed just by tightening the screws, a mounting part can be designed easily.
Both tension/compression load can be measured. 10kN, 20kN and 50kN are available.
● External dimension
Its height is compact as 70 mm and thus does not take space.
Low-profile nuts come as standard.
Also, a low-profile spanner is available as the optional accessory.
Low-profile nuts
Low-profile spanner
● Installation method
Install and use the load cell while the load direction corresponds with the central shaft of the load cell.

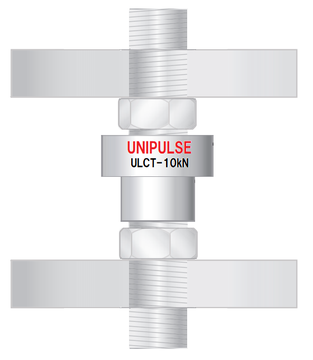

Double nuts are recommended for installation.

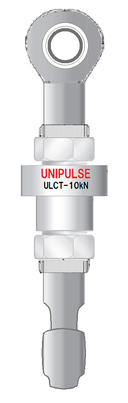

An end rod can be installed directly.
ULCT is on sale now! 1kN, 2kN and 100kN will be available in a line-up in the future.
For more details, contact us from the inquiry form.
