Are you struggling with these problems?

• I'm worried about noise as an amplifier is located away from a load cell.
• Calibration work is tiresome at the time of installation.
• I want to measure force at various locations.

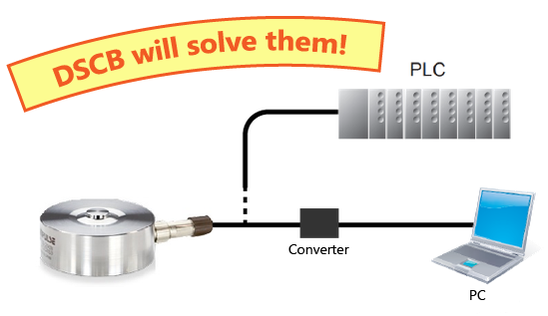

• RS-485 output accurately transmits signals even for long distance!

• No calibration is needed!

• Load can be checked anywhere as long as you have a PC!

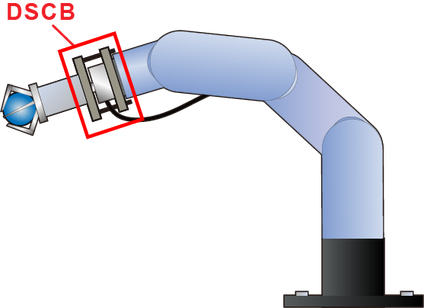

Robot arm

A sensor needs to be installed while considering noise generated by a servo motor.

DSCB is noise & vibration resistant! You can use it without worries.

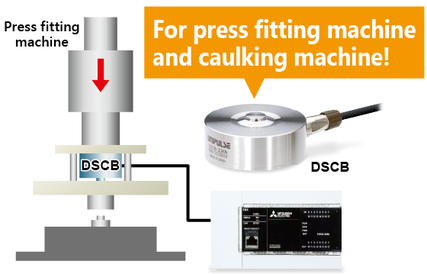

Press machine

The measurement is possible in real time by connecting to PC.

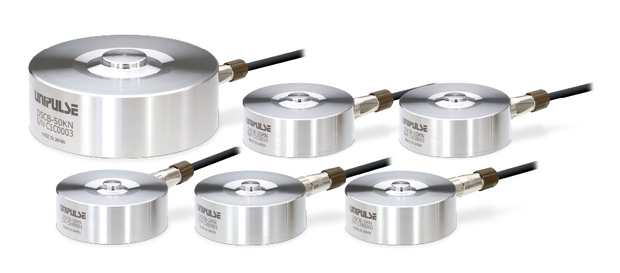

Digital load cell "DSCB" is a load cell which not only inherits high stiffness and high safe overload (500%) from Super Cell (i. e. SCB) but specializes in signal transmissions in noise environment and long distance.

The rated capacity of 1 kN to 50 kN is available.

Since an indicator is not necessary, we can offer it with a simple and an affordable price.

In addition, as DSCB is capable of measurement if you have a PC, it is ideal for those who carry a load cell or operate force measurement on a table.

DSCB dedicated software has a following functions:

• Hold function (Automatically record data)
• Trigger function (Automatically record waveform data)
• Read out calibration value & date
• Filter setting
• Comparison function setting
• Individual information setting & management

5 types of holds listed above are equipped as standard.

They are easy to be set with the PC application, and data is automatically saved when in Hold.

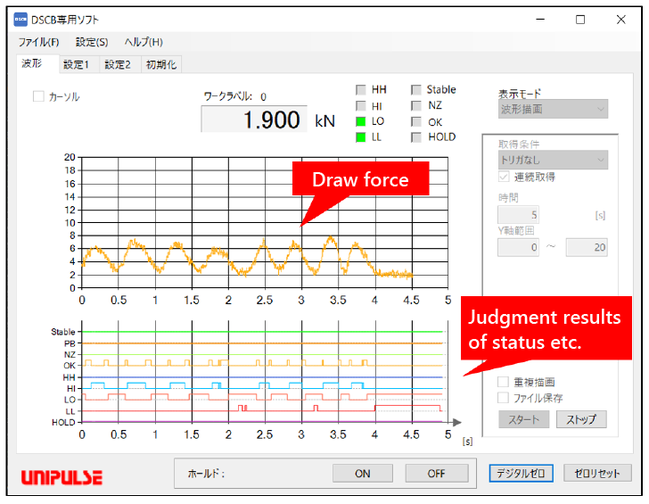

With Trigger function, even instantaneous force can be drawn in graph!

Variable width can be calculated immediately with 2 cursors.

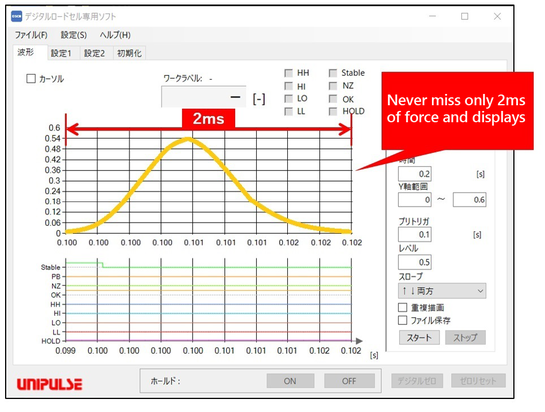

Waveform on triggering

Trigger function is capable of capturing and drawing instantaneous force.

Since it is calibrated at the time of factory shipment, DSCB can be used immediately as soon as it arrives.

The calibration value is saved, and can be read out anytime. It is useful for a regular maintenance.

The settings of "Moving average", "Low-pass filter" and "High-pass filter" can be configured according to noise at sites.

A comparison timing can be set.

• Always
• When it's stable
• Always besides zero
• When it's stable besides zero
• When it's in Hold

DSCB memorizes IDs and settings. No need to keep notes of them.

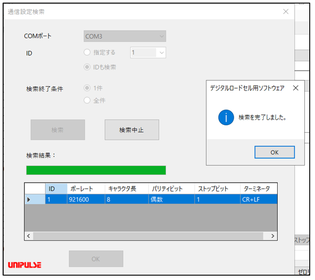

Search screen

Searches ID and Communication Setting and displays in a table format.

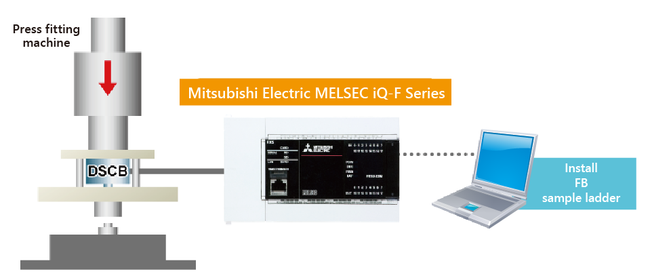

FB (Function Block) and the sample ladders are already created! Just by connecting Mitsubishi Electric's "MELSEC iQ-F Series" and UNIPULSE sensor with RS-485, measured values can be acquired from the sensor effortlessly. Connect the monitor Mitsubishi Electric "GOT2000" to the PLC, and it is possible to display measurement and judgement screen, graph and logging data and to perform settings on a sensor.

The following sample screens are available. Once installed on GOT2000 Series, the measurement environment is arranged immediately.

Supported models:

Programmable Controller MELSEC iQ-F Series: FX5U / FX5UC / FX5UJ / FX5S

GOT2000 Series: GT25 / GT27

An extensive lineup of analog load cell is also available at UNIPULSE.

In combination with indicators, a waveform comparison and various Hold function can be used with analog load cells. Various types of interfaces are available too.

Please select UNIPULSE load cells that fit your applications and environments!
