The FC400 is a compact and easy-to-use indicator with a wide range of interfaces, making it suitable for various applications. It is designed for high-speed sampling and high-precision weighing.
This time, we will introduce the features and the functions of the FC400 series.
High sampling rate
A high-speed weighing and measurement system can be achieved with A/D conversion speeds of up to 2400 times/sec., powerful digital processing capability, and a high display resolution of up to 1/100000.
Useful application software for USB interface

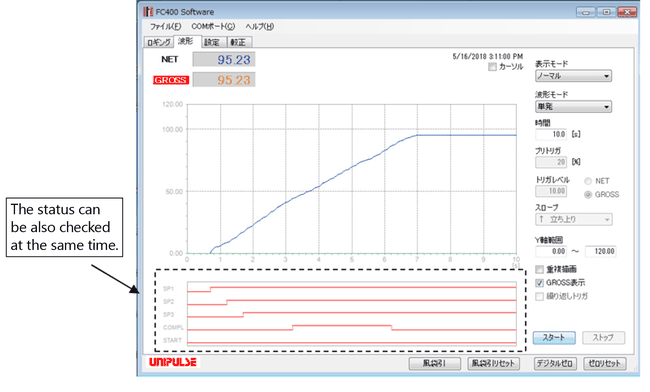

The FC400 settings can be easily managed using the USB interface application software. In addition to parameter copying, functions such as logging, graph display, filter settings, and calibration can all be performed from a PC.
This makes system start-up and maintenance work more convenient, as data, graphs, and system status can be monitored simultaneously.

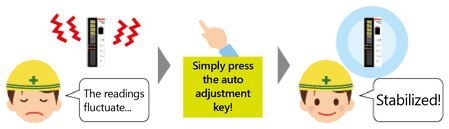

Auto filter adjustment function
FC400 is capable of adjusting the filter automatically. It achieves a balance between the both sides; the accuracy and the stability at the same time.
Automatic searching for an effective combination of the low pass filter and the moving average filter is executed.
Automatically select an ideal filter that adapts the vibrations at a site!
Demo video of "Auto Filter Adjustment Function":
Compact size
FC400 can be fit into a limited space and is ideal for embedded installation.
Lightweight & compact body for 35 mm DIN rail mount.

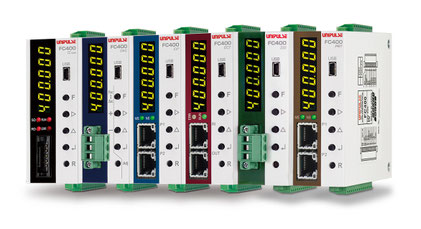

Various interface
- CC-Link
- EtherNet/IP
- EtherCAT
- PROFINET IO
- RS-485
- RS-232
- USB
- Analog output
FC400 is a simple indicator that supports both weighing and force measurements with high-speed sampling and extensive interface.
Do consider FC400 if you are looking for an indicator for the following applications:
- For high-accuracy feeding & discharging weighing such as a hopper scale and a packer scale.
- For weighing with intense vibrations such as high-speed liquid filling.
- For applications that require powerful filters such as a fuel gauge and a level meter.
- For simple systems such as a general platform scale.
- For equipment with a short takt time such as a capper.
- For applications where high-speed response is indispensable such as a thrust force check of a pressing machine.
