UNIPULSE provides an extensive lineup of load cells, allowing you to choose the ideal solution for a wide variety of equipment.

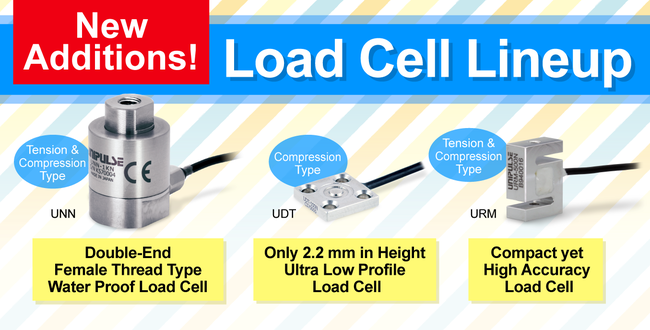

Among them, in this issue we will introduce three new load cells which are added to our lineup. Each load cell has its distinctive features such as space-saving design, high accuracy measurement, high speed response, and so on.
"UNN": Tension & Compression Double-end Female Thread Water Proof Load Cell
UNN is a female thread type load cell with hardly any interference by torsion & less impact on accuracy against lateral load as well as easy-to-install. It is ideal for building a press machine in horizontal direction that attaches jigs on a load cell side or a press machine with a guide-free architecture. Simplification of equipment and high accuracy force measurement can be achieved together.
Load measurement in both directions— tension and compression— is supported. Due to its compact design with the height of 30 mm, even embedding in a limited space is made easy.
| Rated capacity: | 1 kN/2 kN/5 kN/10 kN |
| Safe overload: | 300% R.C. |
| Non-linearity: | 0.2% or less R.O. |
| Hysteresis: | 0.2% or less R.O. |
| Repeatability: | 0.1% or less R.O. |
| Natural frequency: | 20 kHz |
| Load cell material: | Stainless steel |
"UDT": Only 2.2 mm High! Ultra Low Profile Compression Load Cell
UDT is an ultra low profile load cell with the height of 2.2 mm. Designed as a flange integrated type, this load cell can be secured with countersunk screws.
The natural frequency is outstandingly high as 160 kHz, so that it even supports measurements that involve high speed load changes. Installing in small spaces inside equipment or device, it is ideal for checking load distribution and load balance of a workpiece by arranging multiple units.
| Rated capacity: | 100 N/200 N/500 N |
| Safe overload: | 150% R.C. |
| Non-linearity: | 0.5% or less R.O. |
| Hysteresis: | 0.5% or less R.O. |
| Repeatability: | 0.1% or less R.O. |
| Natural frequency: | 160 kHz |
| Load cell material: | Stainless steel |

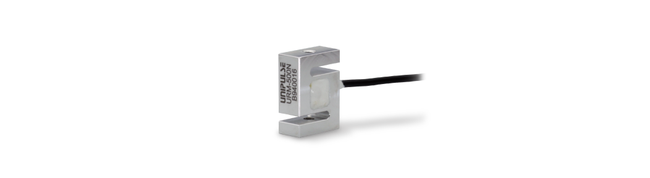

"URM-1KN": High Accuracy Ultra Compact Tension & Compression Load Cell
In addition to the conventional 50 N, 100 N, 200 N and 500 N, 1 kN is newly added to the lineup of URM.
URM supports load measurements of both directions— tension and compression. Not only the main body is compact-size and space-saving, but also is capable of high accuracy measurement.
| Rated capacity: | 1 kN |
| Safe overload: | 200% R.C. |
| Non-linearity: | 0.05% or less R.O. |
| Hysteresis: | 0.05% or less R.O. |
| Repeatability: | 0.05% or less R.O. |
| Natural frequency: | 4.4 kHz |
| Load cell material: | Stainless steel |
UNIPULSE is offering a wide range of load cell lineup other than we introduced this time. Not to mention an optimal load cell selection that matches your application or installation requirements, we flexibly respond to your requests such as supports of vacuum, high & low temperature environments as well as siloxane-free specification etc.
If you have any problem regarding load cells, do not hesitate to ask us.
